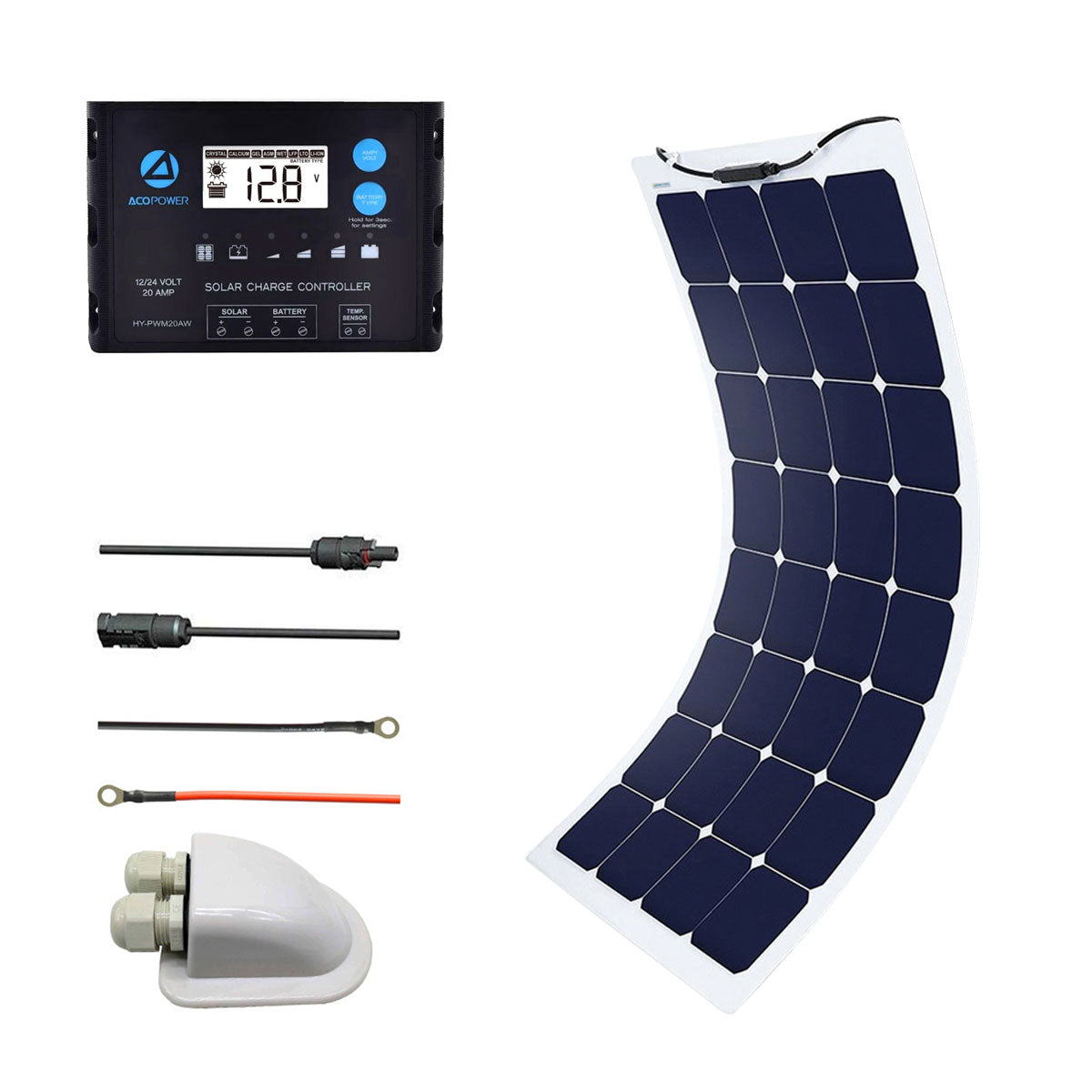

ACOPOWER Flexible Solar Panel Kit + MPPT / PWM Charge Controller

ACOPOWER Flexible Solar Panel Kit + MPPT / PWM Charge Controller

Name: ACOPOWER Flexible Solar Panel Kit + MPPT / PWM Charge Controller
Brand: ACOPOWER
SKU: HY-FLK-110W20A
Price: 49900.0 JPY
Availability: InStock

¥49,900

Black Friday Sale discount code will be automatically applied once you add the product to the cart, or reach to the checkout page.

SOLAR KIT SIZE

110W PWM20A100 220W PWM20A100 220W MPPT30A100 330W MPPT30A100 440W MPPT40A50 550W MPPT50A100

量

税込み。配送料はチェックアウト時に計算されます。

で利用可能なピックアップ Walnut USA

通常24時間で準備が完了します

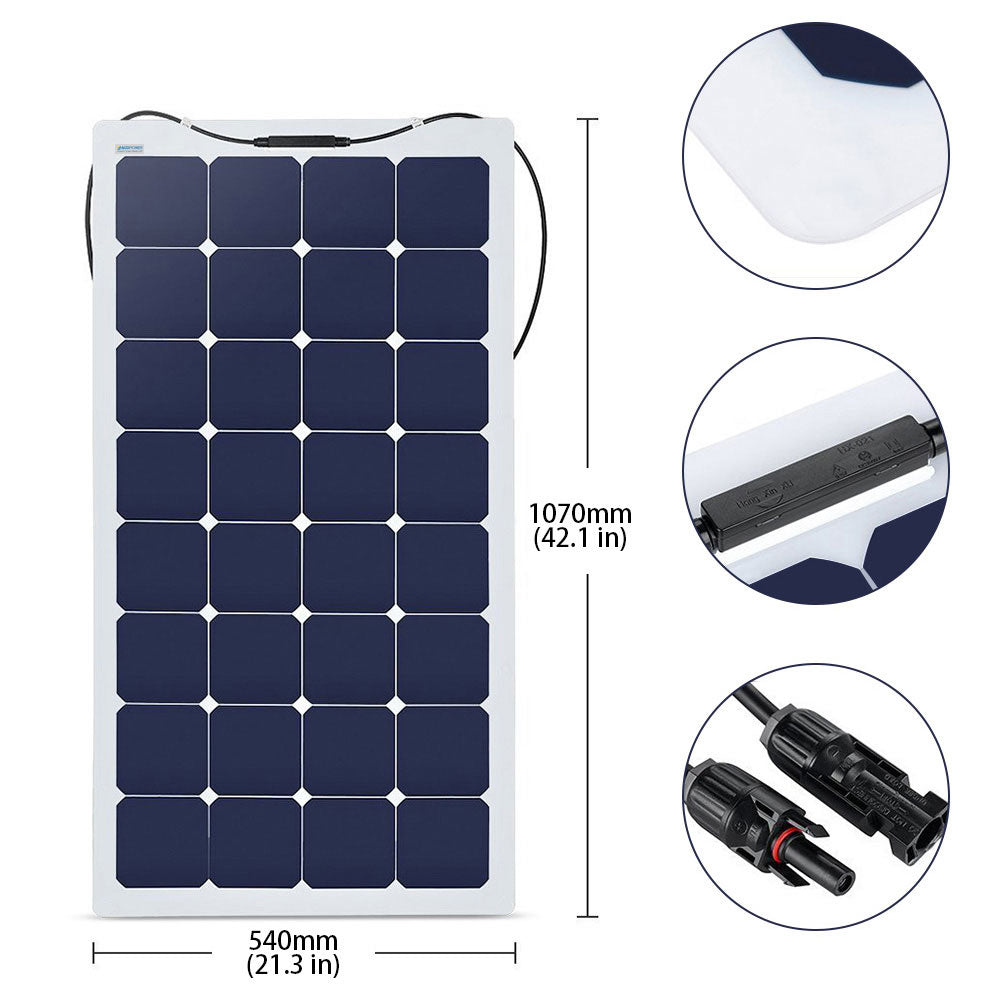

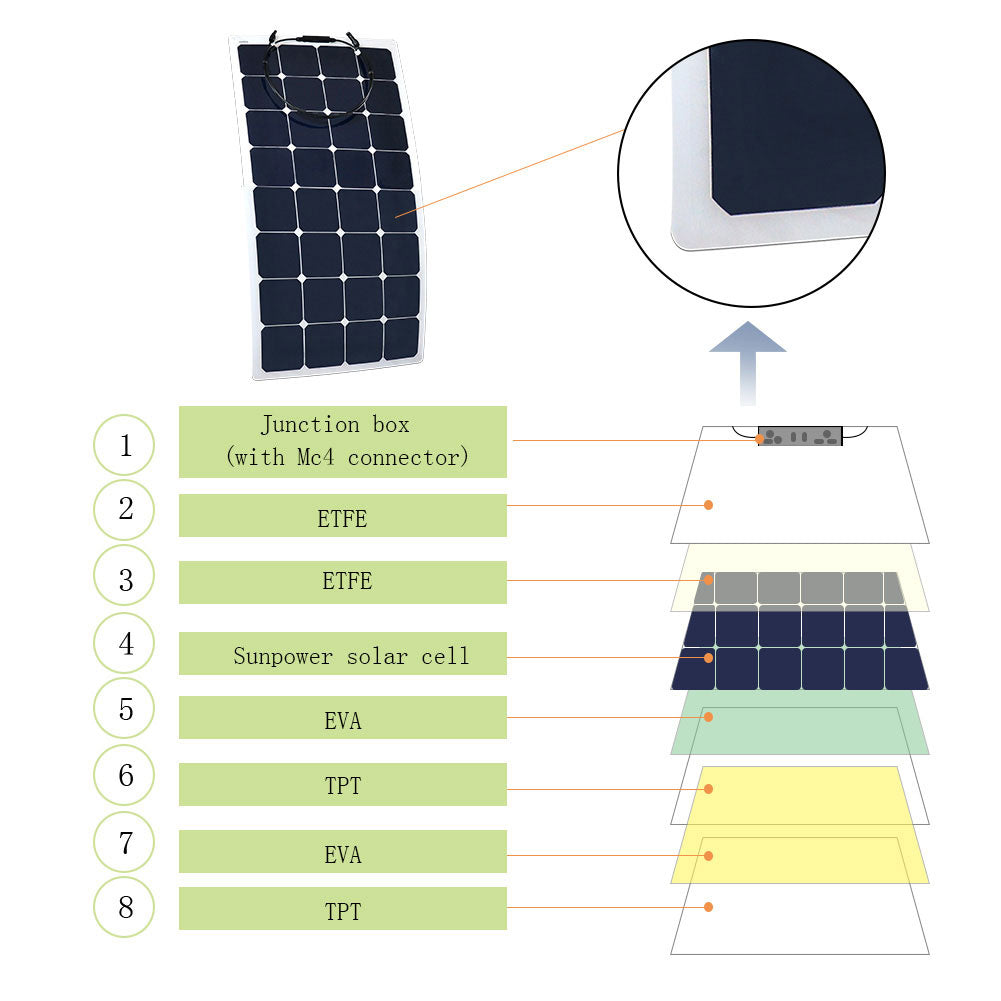

ACOPOWER 110W FLEXIBLE SOLAR PANEL

Maximum Power at STC (Pmax): 110W
Maximum Operating Voltage (Vmp): 17.6V
Maximum Operating Current (Imp): 6.25A
Dimension: 1070x540x3mm / 44.7x21.3x0.12 in

Open-Circuit Voltage (Voc): 20.8V
Short-Circuit Current (Isc): 6.9A
Operating Temperature: -20ºC to 65ºC
Weight: 2.2kg / 4.85 lbs

Maximum Power at STC (Pmax): 110W
Maximum Operating Voltage (Vmp): 17.6V
Maximum Operating Current (Imp): 6.25A
Dimension: 1070x540x3mm / 44.7x21.3x0.12 in
Open-Circuit Voltage (Voc): 20.8V
Short-Circuit Current (Isc): 6.9A
Operating Temperature: -20ºC to 65ºC
Weight: 2.2kg / 4.85 lbs

ACOPOWER 50A MPPT SOLAR CHARGE CONTROLLER

Nominal System Voltage: 12v/24v/36v/48v DC Auto
Rated Charge Current: 50A
Max. PV Open Circuit Voltage: 150V/138V
MPP Voltage Range: V(BAT)+2V～108V
Working temperature: -25℃～+50℃
RS485 Interface: RS485(RJ45)
Dimension: 261*216*119mm

Grounding: Common negative Design
Battery Input Voltage Range: 8V～68V
Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
Storage temperature: -20℃～+70℃
Enclosure: IP33
Terminals: 16mm2/6AWG

Nominal System Voltage: 12v/24v/36v/48v DC Auto
Rated Charge Current: 50A
Max. PV Open Circuit Voltage: 150V/138V
MPP Voltage Range: V(BAT)+2V～108V
Working temperature: -25℃～+50℃
RS485 Interface: RS485(RJ45)
Dimension: 261*216*119mm
Grounding: Common negative Design
Battery Input Voltage Range: 8V～68V
Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
Storage temperature: -20℃～+70℃
Enclosure: IP33
Terminals: 16mm2/6AWG

ACOPOWER MIDAS 40A MPPT SOLAR CHARGE CONTROLLER

Nominal System Voltage: 12/24VDC Auto
Rated Charge Current: 40A
Max. PV Open Circuit Voltage: 100V (1) 92V (2)
MPPT Voltage Range: (Battery Voltage+2V) ~72V
Working temperature: -25℃～+50℃
Terminals: Up to 6 AWG
Dimension: 10x7.28x2.67 in / 255×185×67.8mm

Grounding: Common negative
Battery Input Voltage Range: 8V～32V
Rated charge Power: 520W/12V 1040W/24V
RS485 Interface: 5VDC/200mA(RJ45)
Storage temperature: -20℃～+70℃
Enclosure: IP33
Weight: 3.75lbs / 1.7kg

Nominal System Voltage: 12/24VDC Auto
Rated Charge Current: 40A
Max. PV Open Circuit Voltage: 100V (1) 92V (2)
MPPT Voltage Range: (Battery Voltage+2V) ~72V
Working temperature: -25℃～+50℃
Terminals: Up to 6 AWG
Dimension: 10x7.28x2.67 in / 255×185×67.8mm
Grounding: Common negative
Battery Input Voltage Range: 8V～32V
Rated charge Power: 520W/12V 1040W/24V
RS485 Interface: 5VDC/200mA(RJ45)
Storage temperature: -20℃～+70℃
Enclosure: IP33
Weight: 3.75lbs / 1.7kg

ACOPOWER 30A MPPT SOLAR CHARGE CONTROLLER

Nominal system voltage: 12/24VDC Auto
Battery input voltage range: 8V～32V
Max.PV input power: 12V/390W, 24V/780W
Working environment temperature: -25℃～+50℃
Grounding: Common negative
Power Terminals: 6AWG(16mm2)
Dimensions: 228x164x55mm

Rated charge current: 30A
Max.PV open circuit voltage: 100VDC
MPP voltage range: V(BAT+2V)～72V
Storage temperature range: -35℃～+80℃
Communication: RS485
Enclosure: IP30
Weight: 1.2kg

Nominal system voltage: 12/24VDC Auto
Battery input voltage range: 8V～32V
Max.PV input power: 12V/390W, 24V/780W
Working environment temperature: -25℃～+50℃
Grounding: Common negative
Power Terminals: 6AWG(16mm2)
Dimensions: 228x164x55mm
Rated charge current: 30A
Max.PV open circuit voltage: 100VDC
MPP voltage range: V(BAT+2V)～72V
Storage temperature range: -35℃～+80℃
Communication: RS485
Enclosure: IP30
Weight: 1.2kg

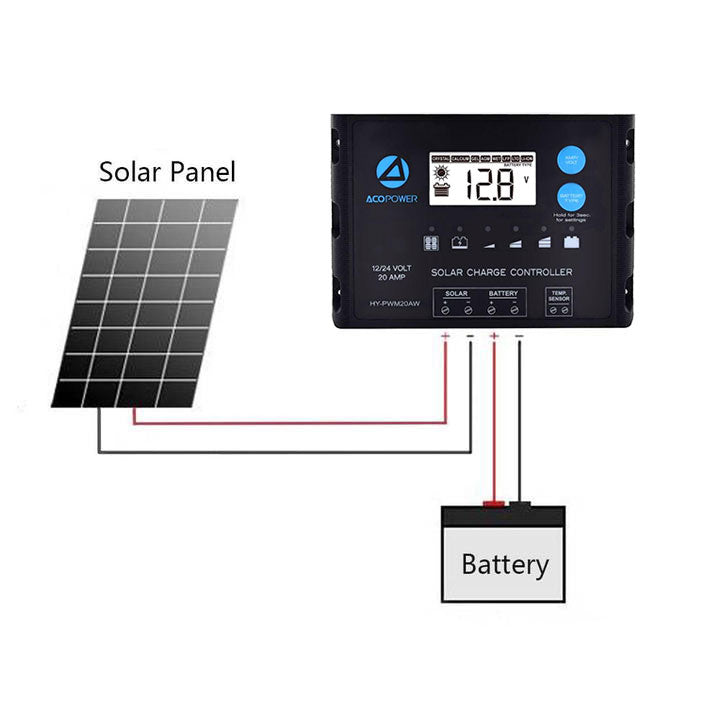

ACOPOWER 20A PWM CHARGE CONTROLLER

Nominal Voltage: 12V/24V DC
Rated Charge Current: 20A
Battery Start Charging Voltage: 3V
Operating Temperature: -40°F to 140°F
Terminals: Up to 10 AWG
Dimensions: 5.59x 3.7x 1.06 inches

Grounding: Common Negative
Max. PV Input Voltage: 50V
Temperature Compensation Coefficient: -24mV/°C
Storage Temperature: -40°F to 185°F
Enclosure: IP65
Weight: 1.1 lbs

Nominal Voltage: 12V/24V DC
Rated Charge Current: 20A
Battery Start Charging Voltage: 3V
Operating Temperature: -40°F to 140°F
Terminals: Up to 10 AWG
Dimensions: 5.59x 3.7x 1.06 inches
Grounding: Common Negative
Max. PV Input Voltage: 50V
Temperature Compensation Coefficient: -24mV/°C
Storage Temperature: -40°F to 185°F
Enclosure: IP65
Weight: 1.1 lbs

WARRANTY INFORMATION

Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
Solar Charge Controllers: The controller itself comes with a 1-year warranty.
Accessories: 1-year material warranty

Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
Solar Charge Controllers: The controller itself comes with a 1-year warranty.
Accessories: 1-year material warranty

USER MANUAL

ACOPOWER Flexible Solar Panel Kit + MPPT / PWM Charge Controller
