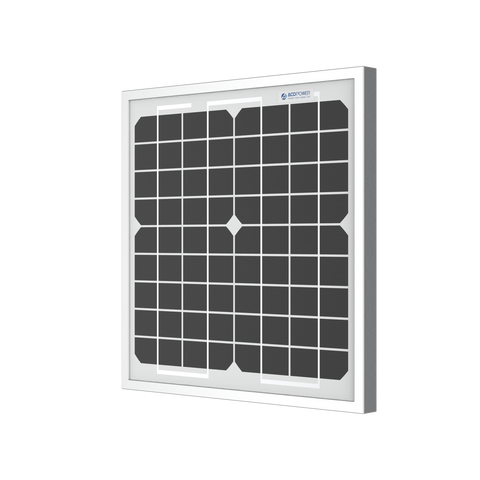

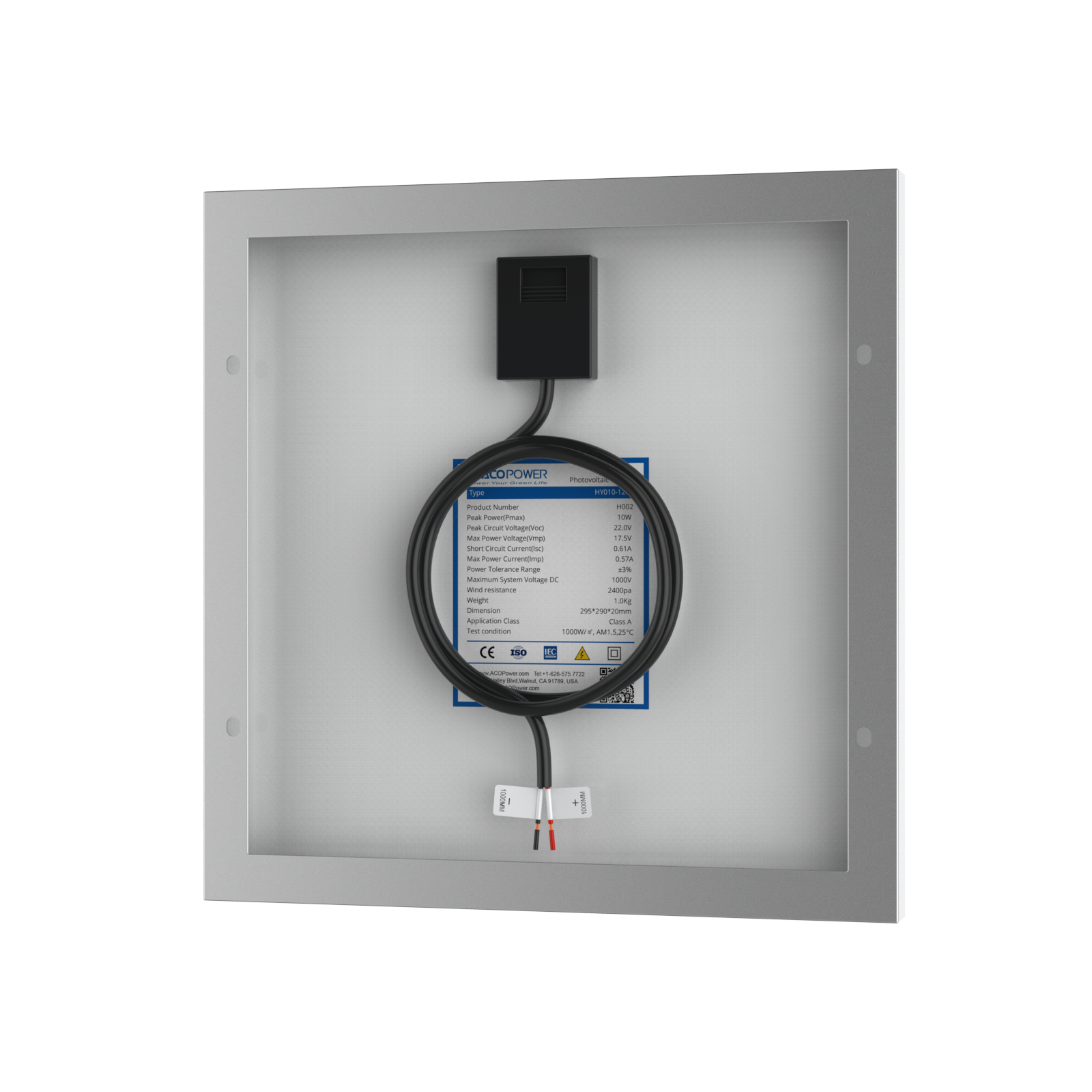

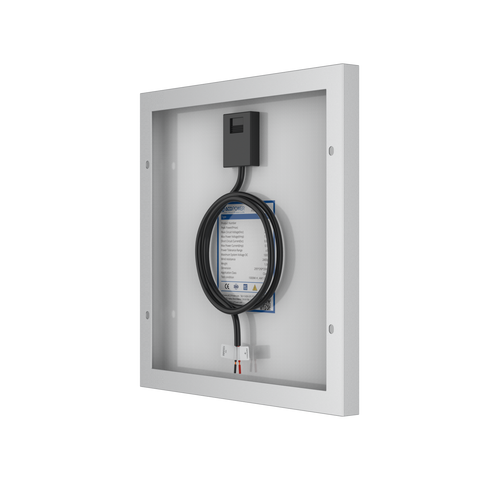

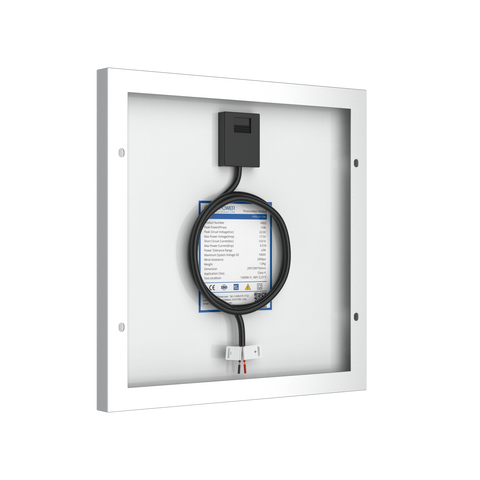

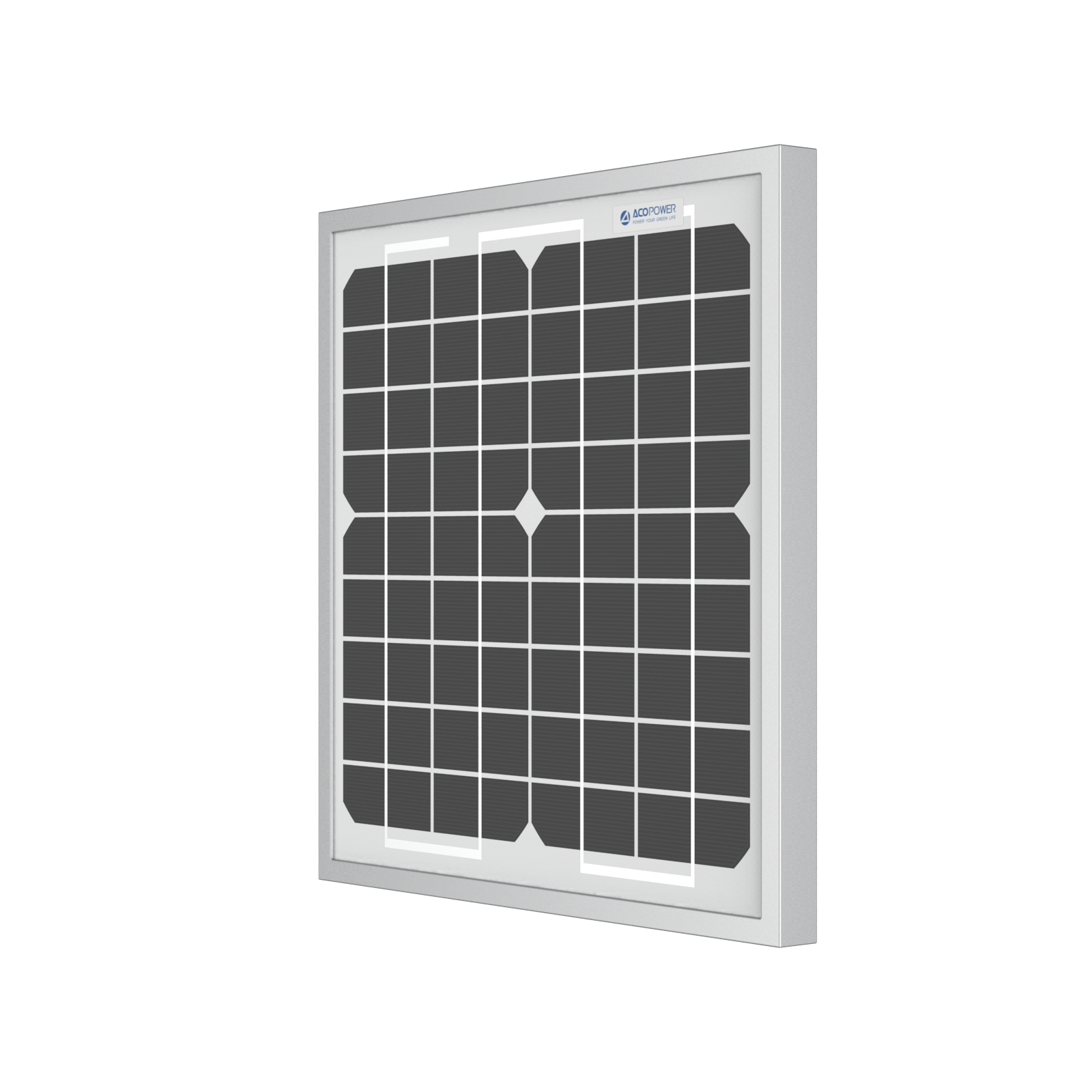

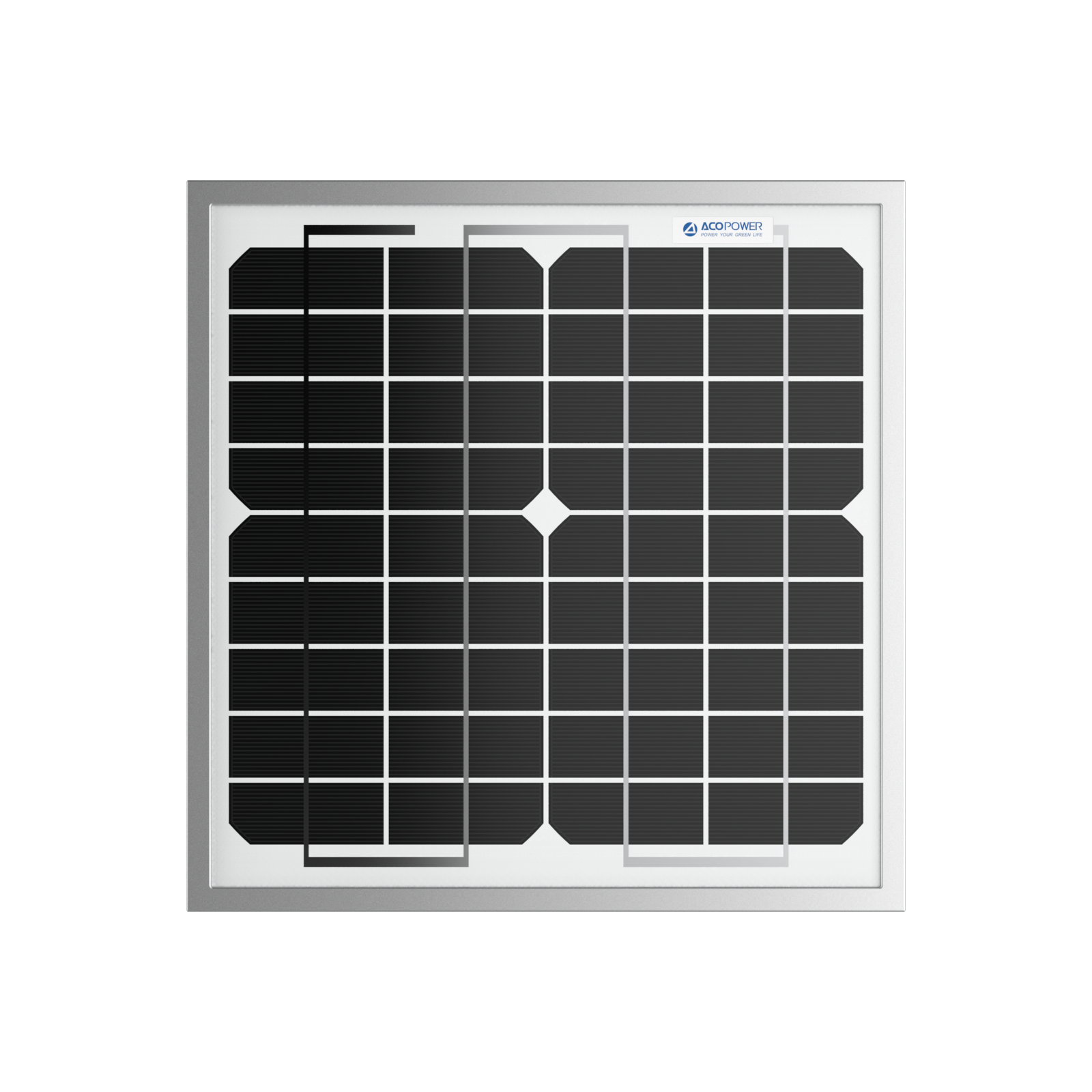

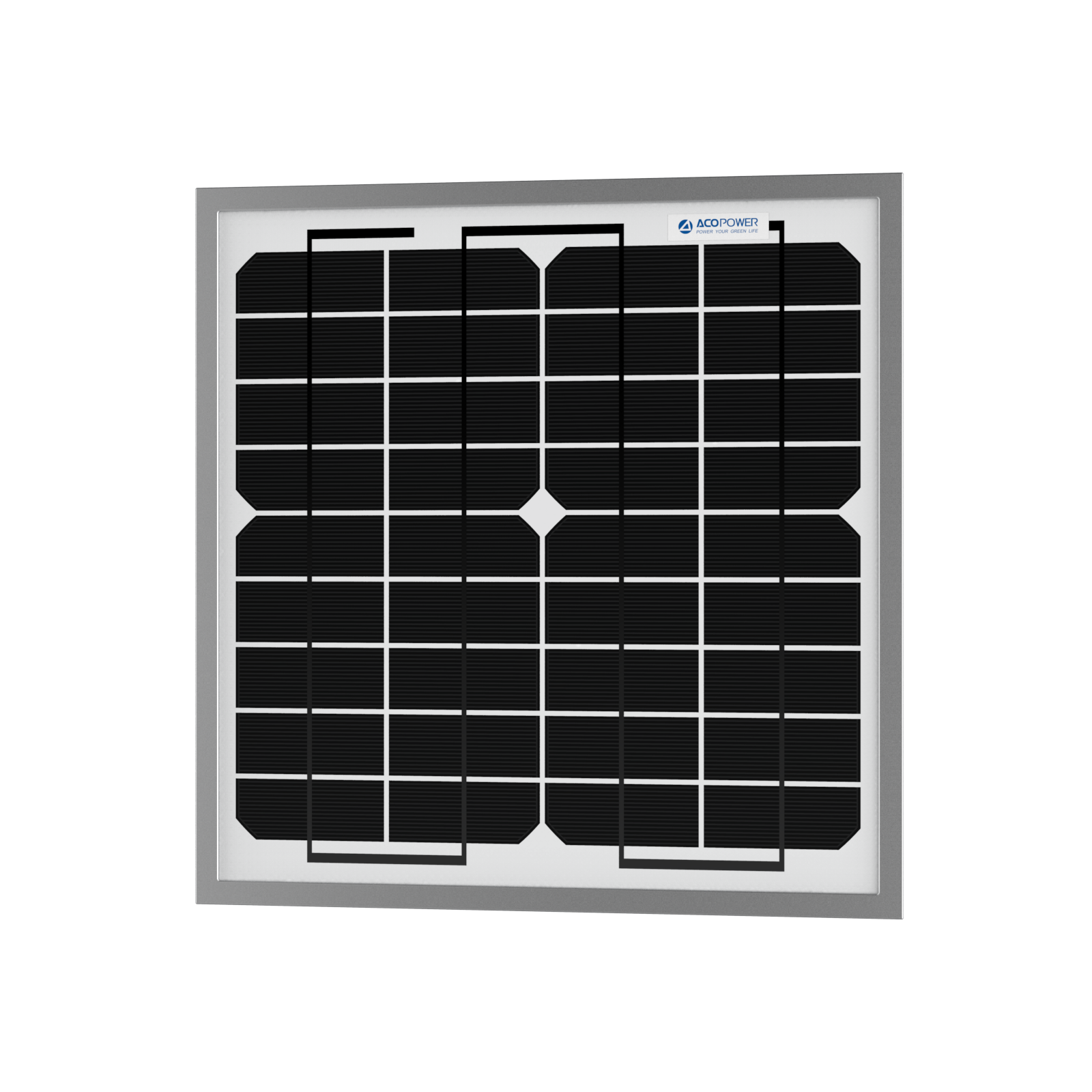

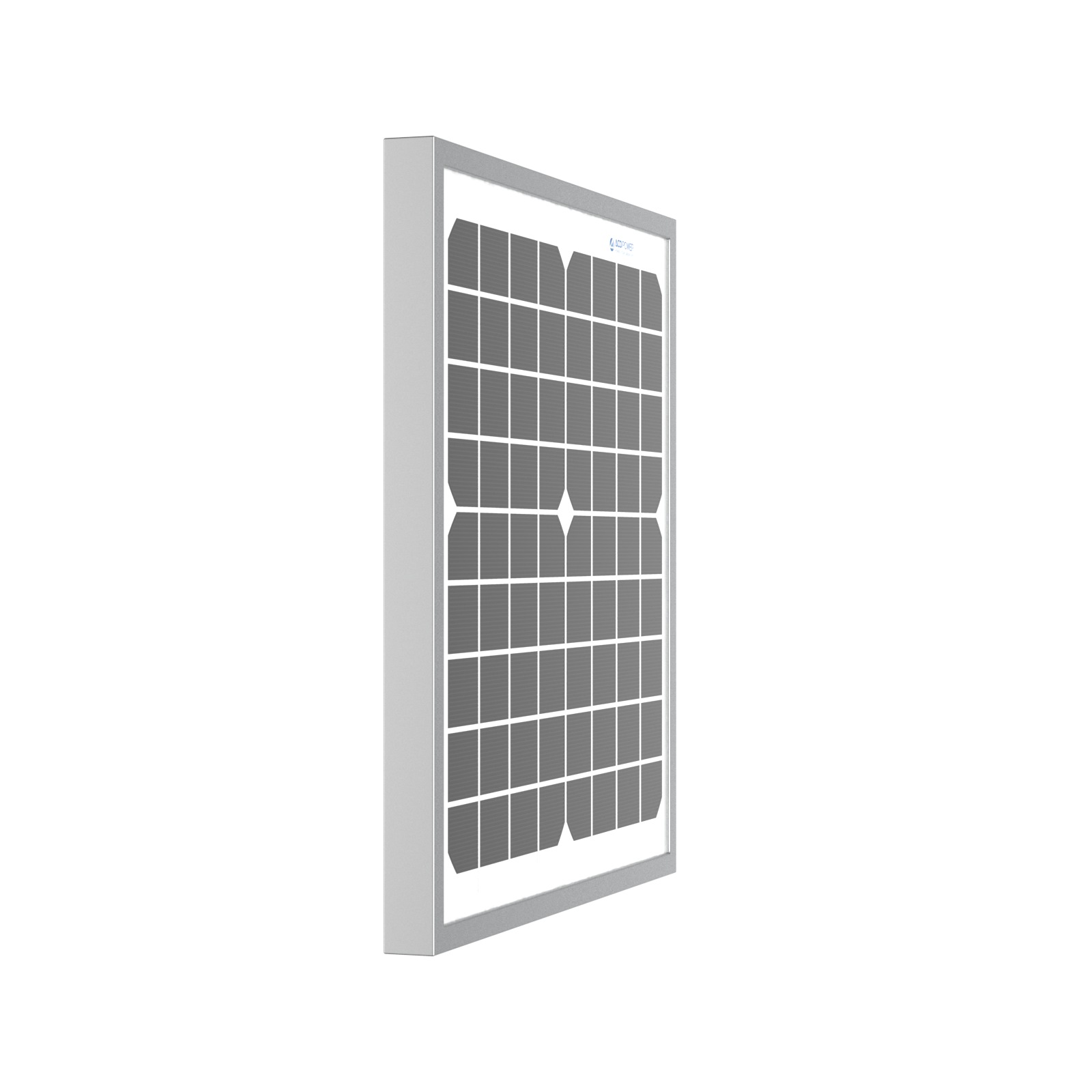

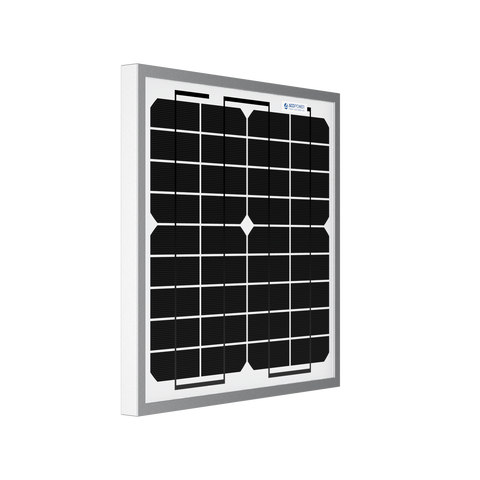

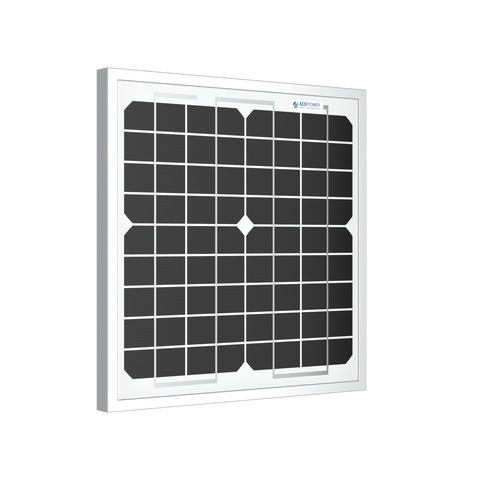

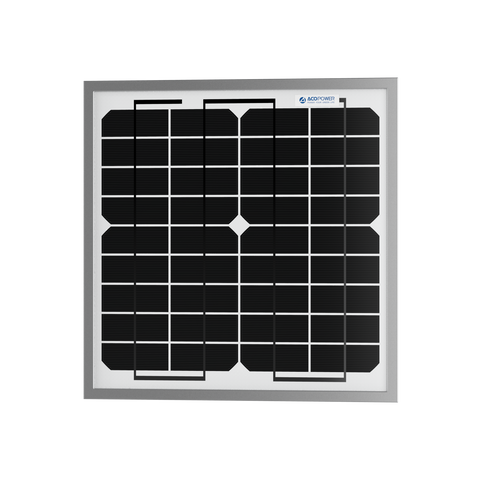

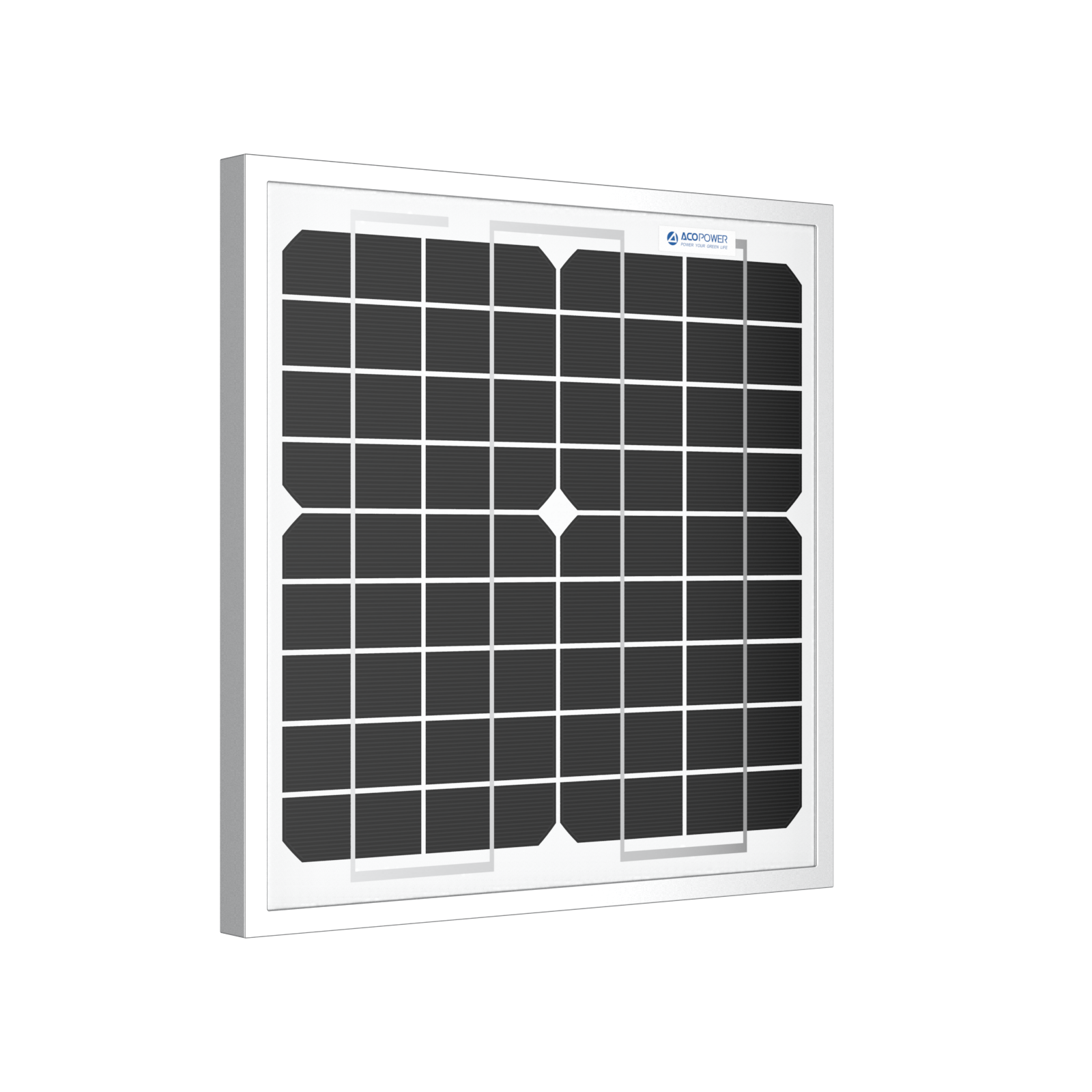

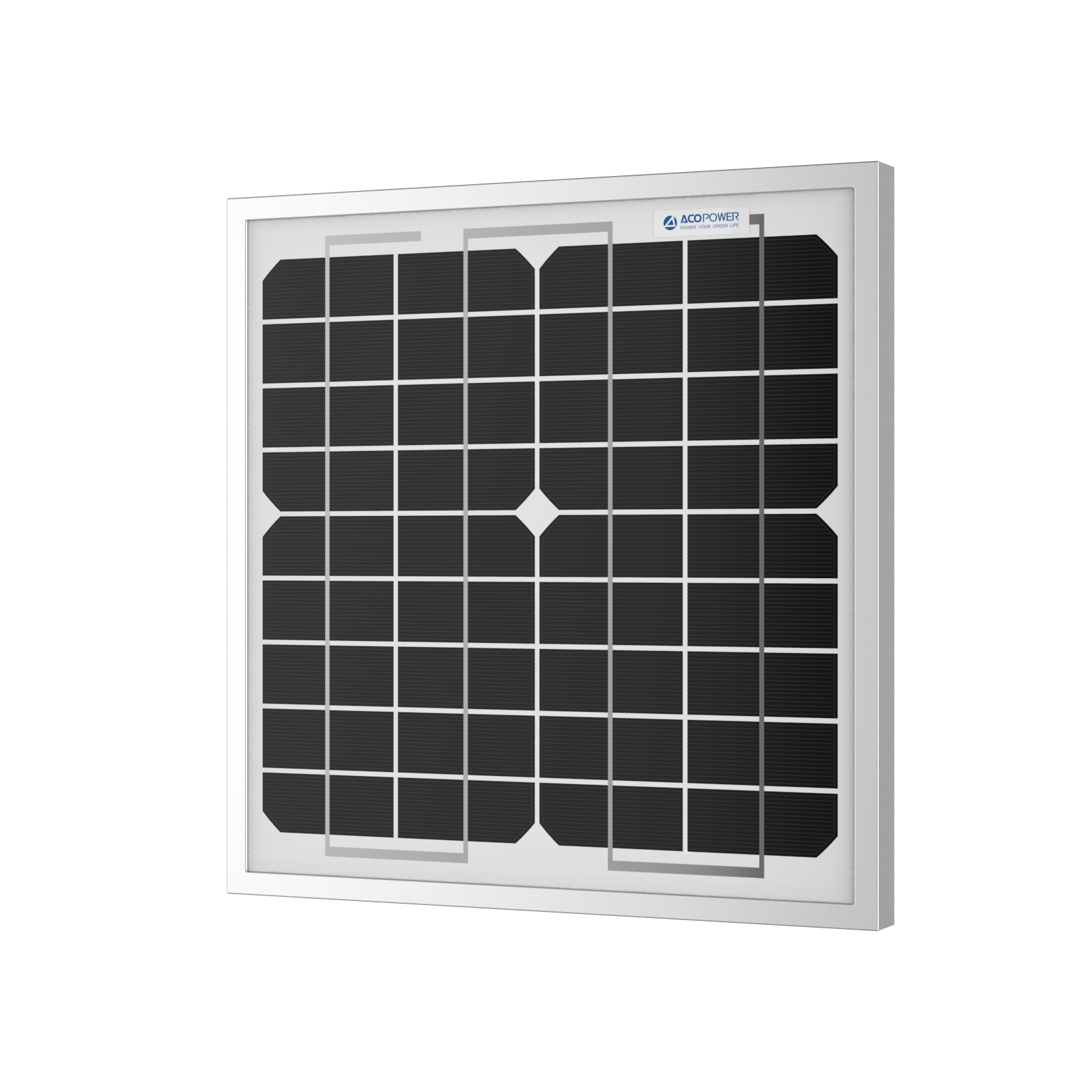

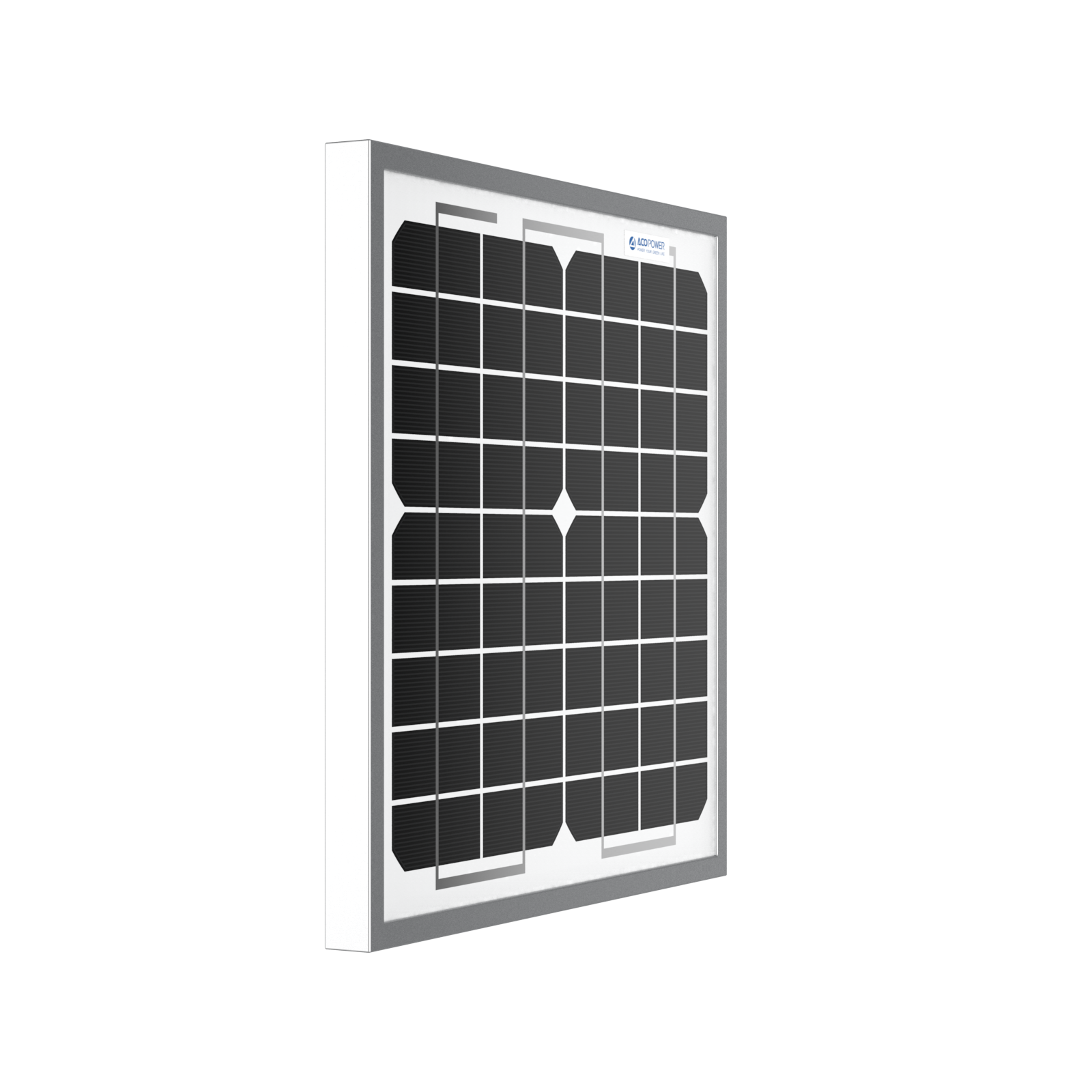

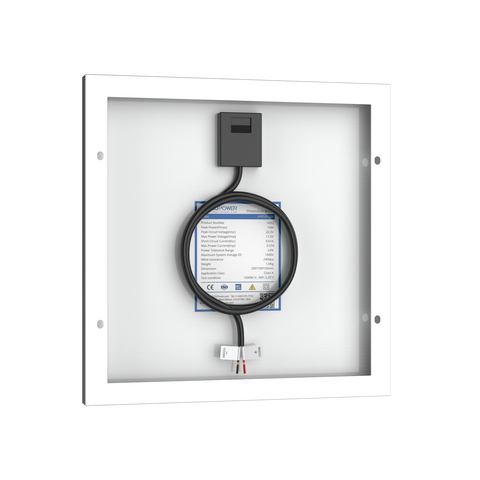

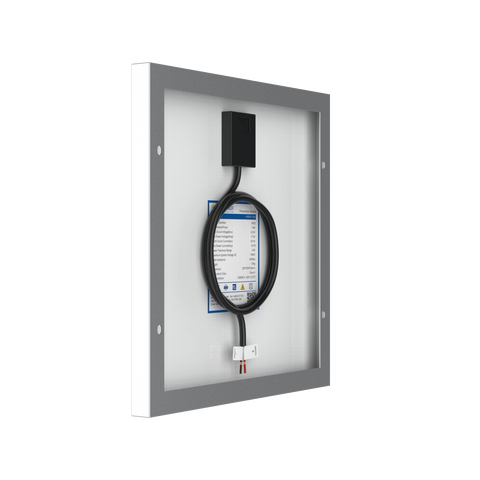

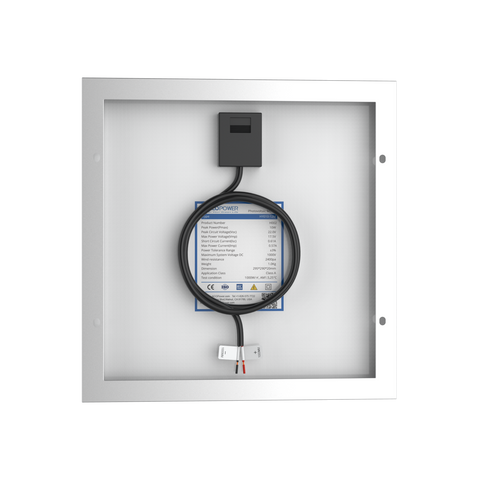

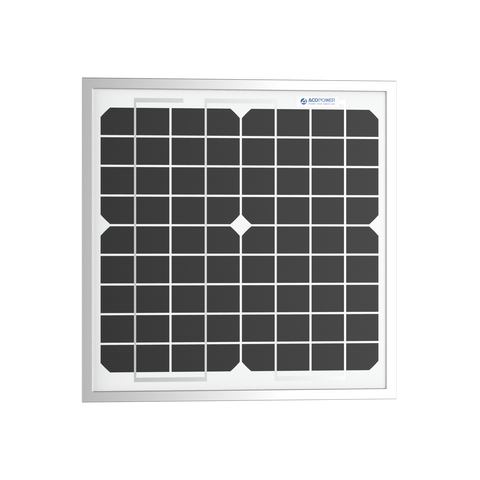

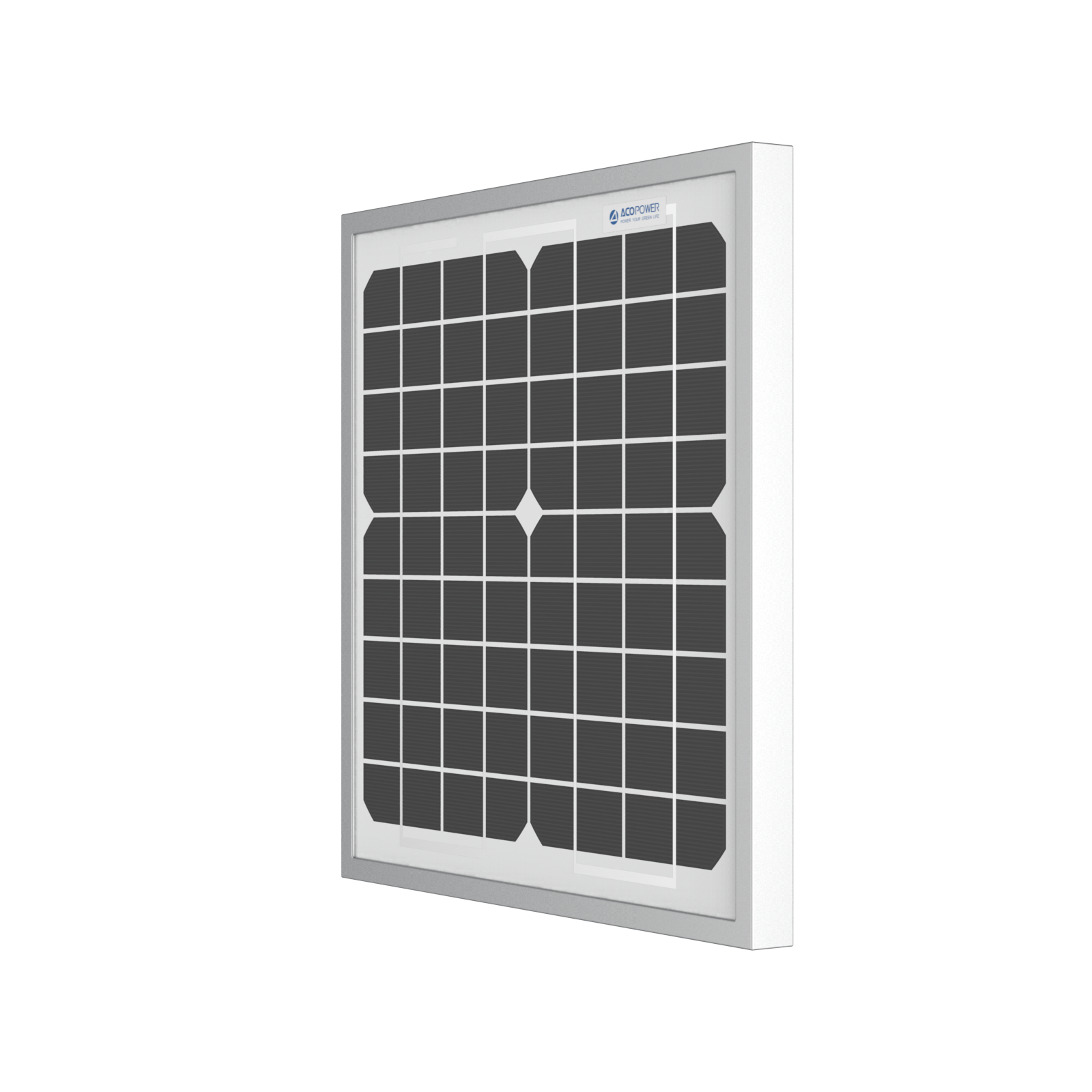

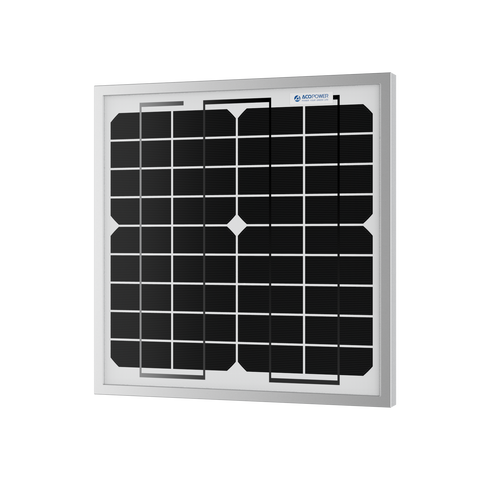

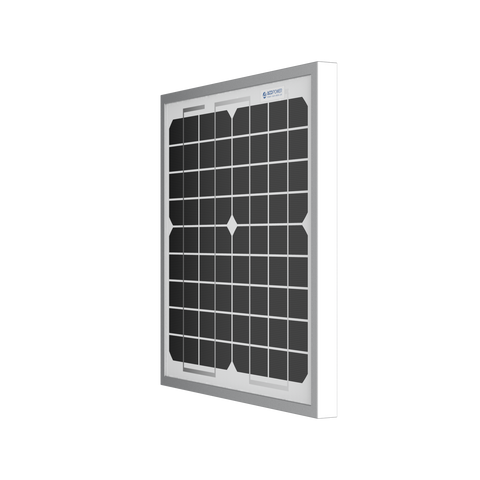

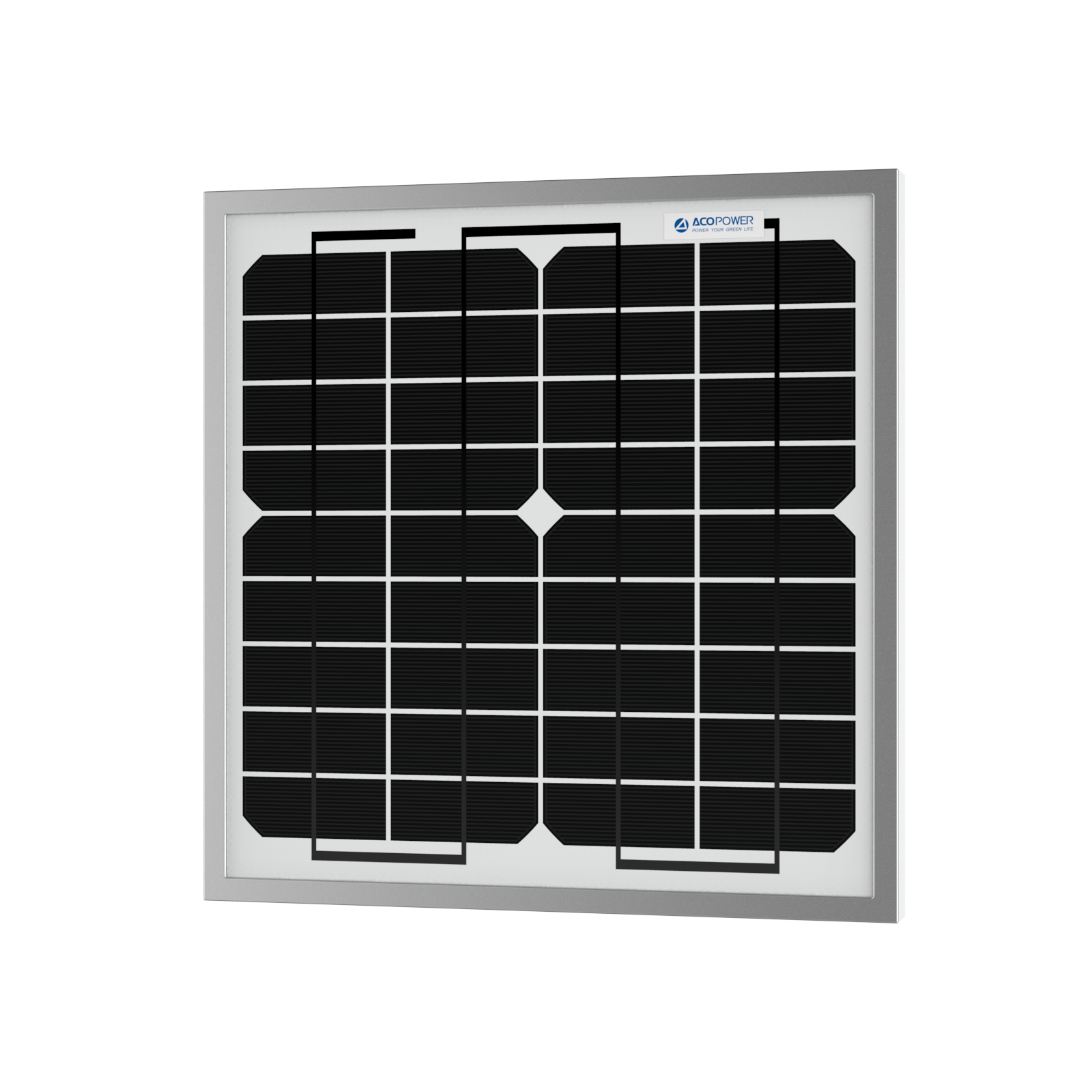

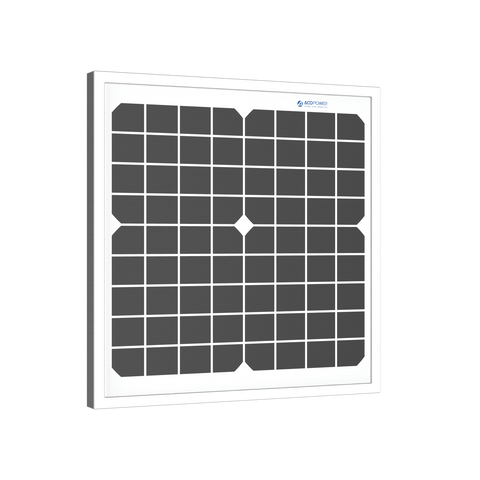

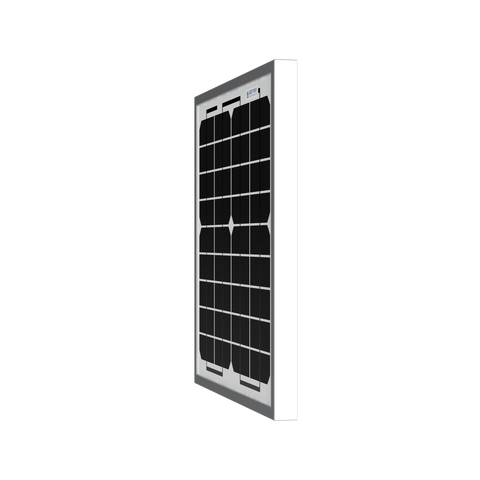

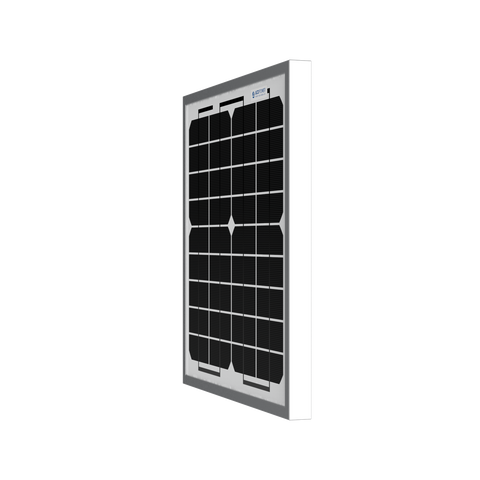

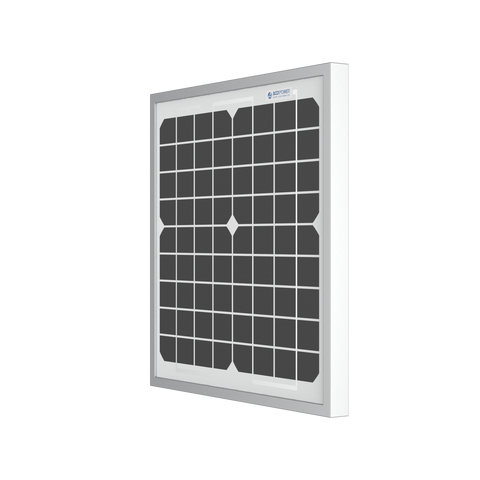

10 Watt 12 Volt Monocrystalline Solar Panel
SKU:
HY010-12M
- ¥4,100
- ¥4,100
- Unit price
- per
- 10W High Efficiency – A+ monocrystalline cells for 12V battery charging.

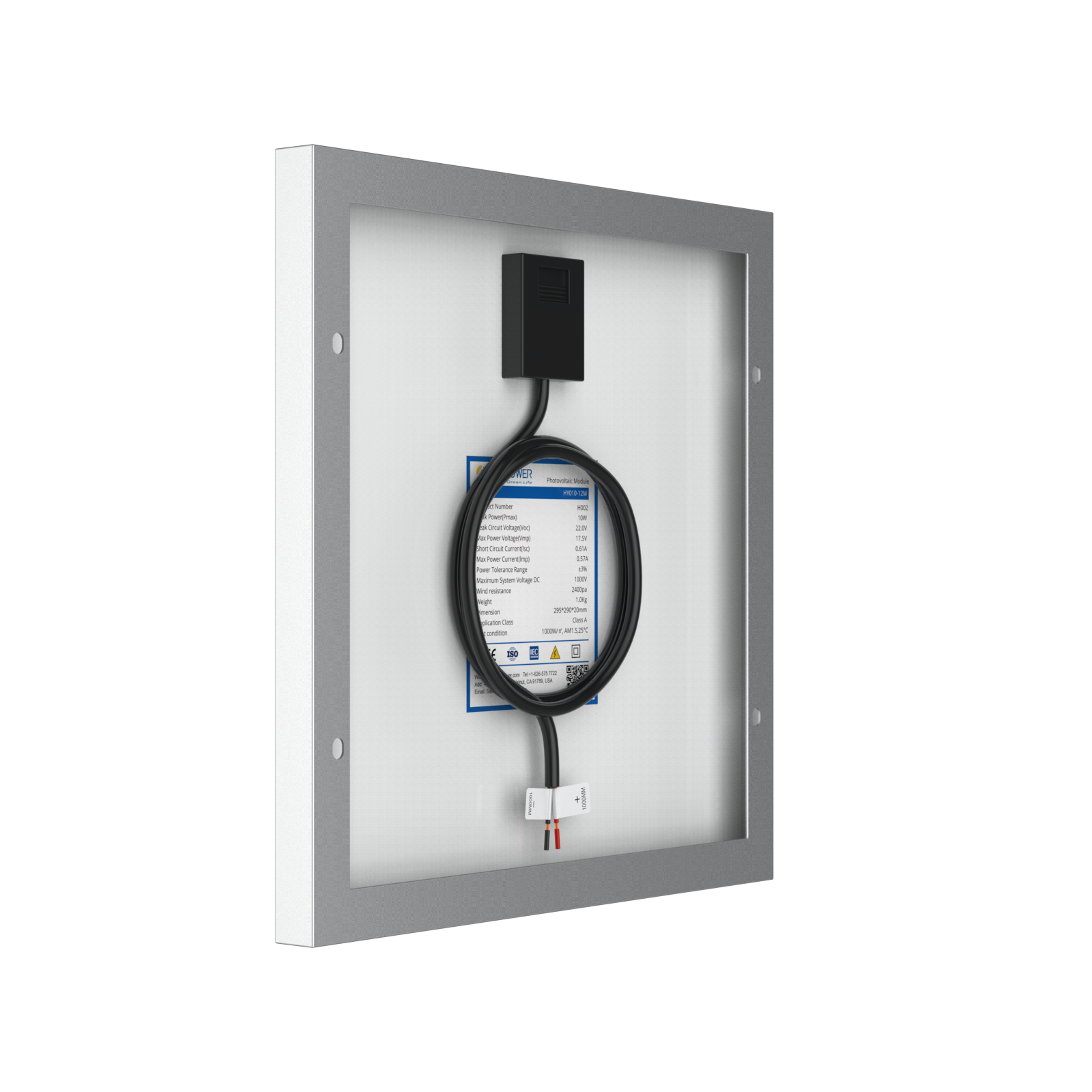

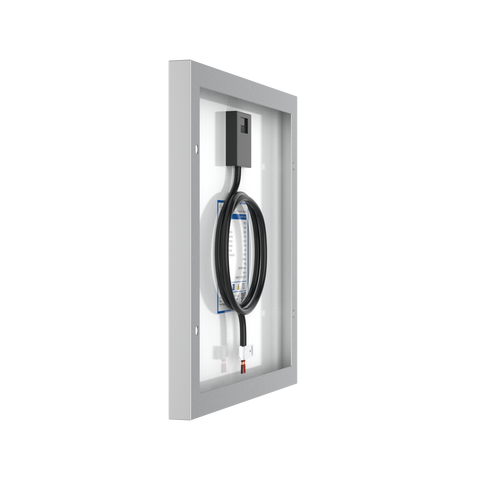

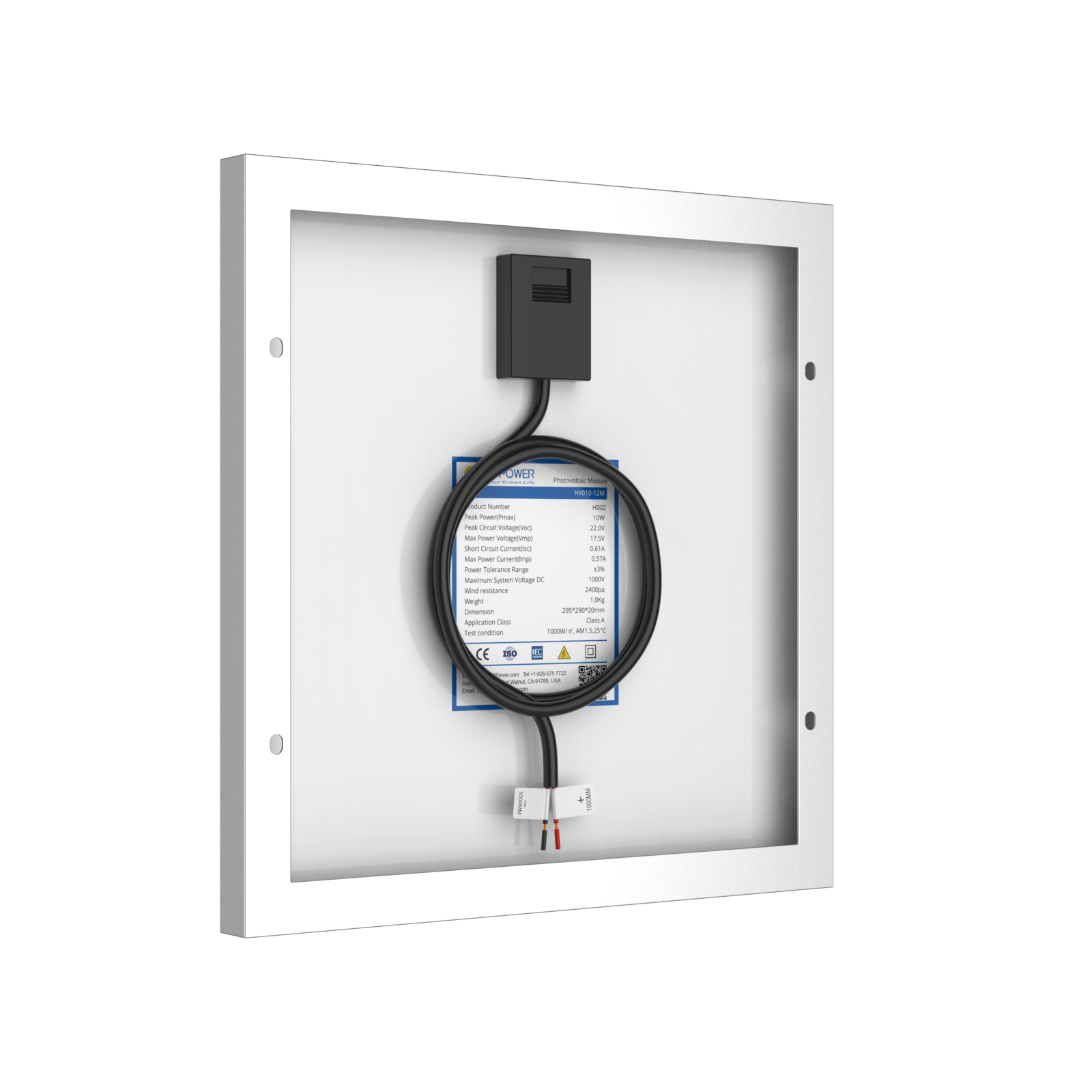

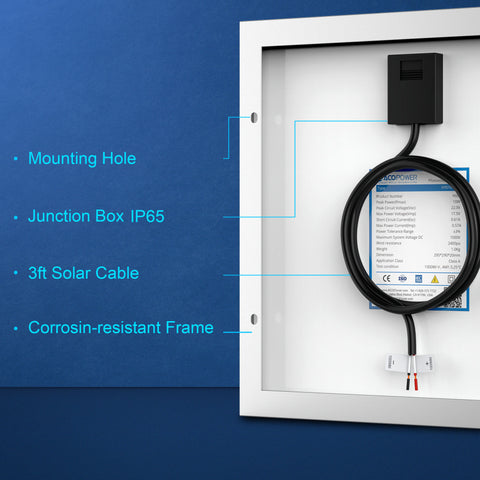

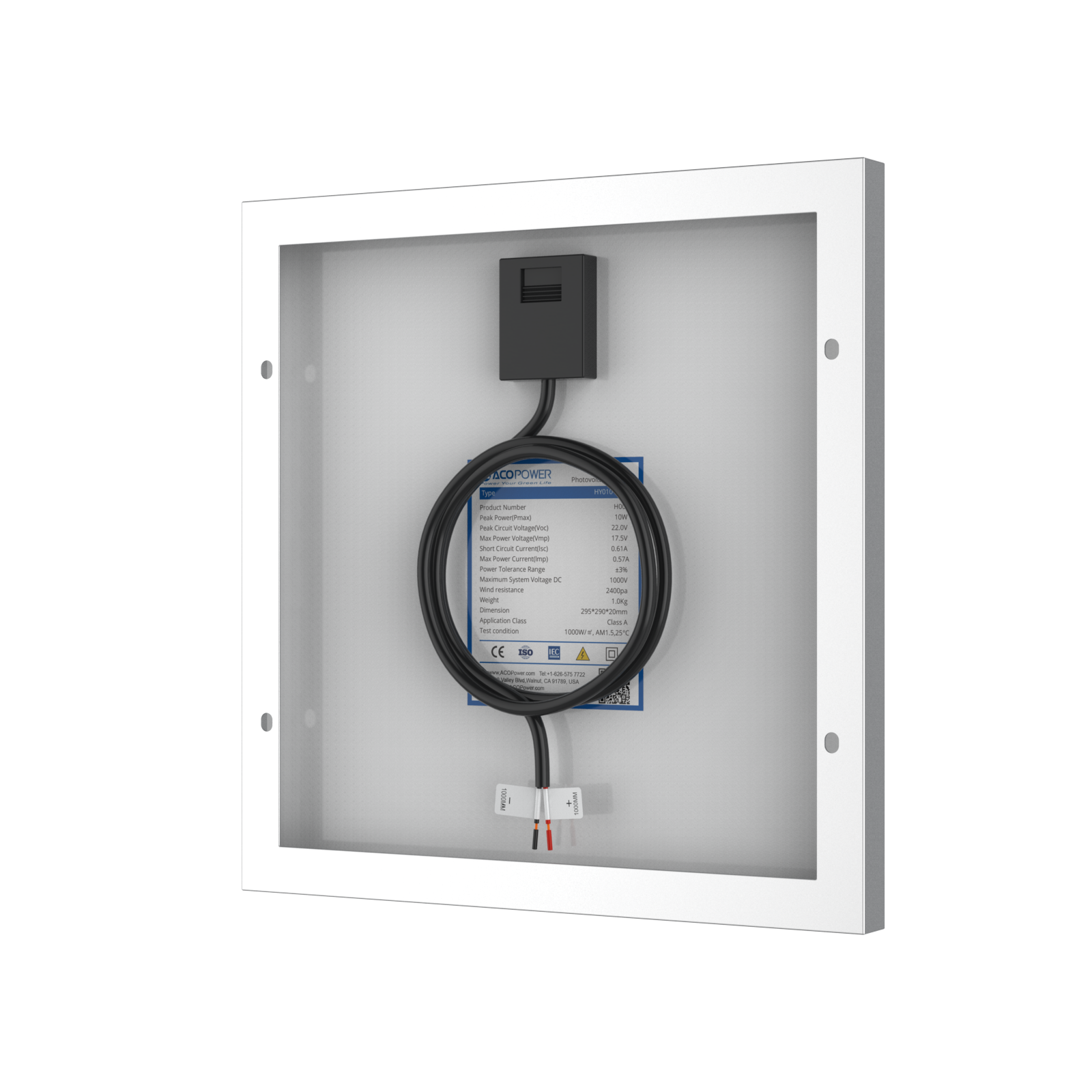

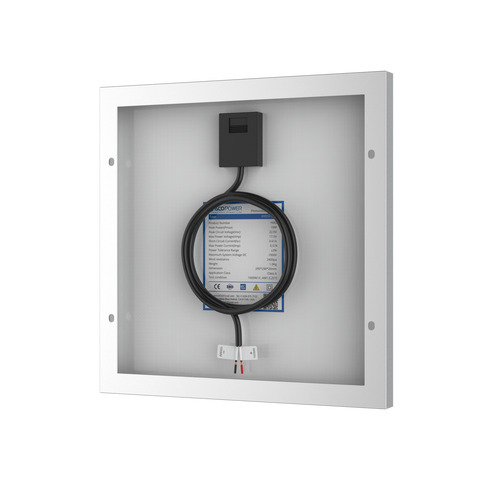

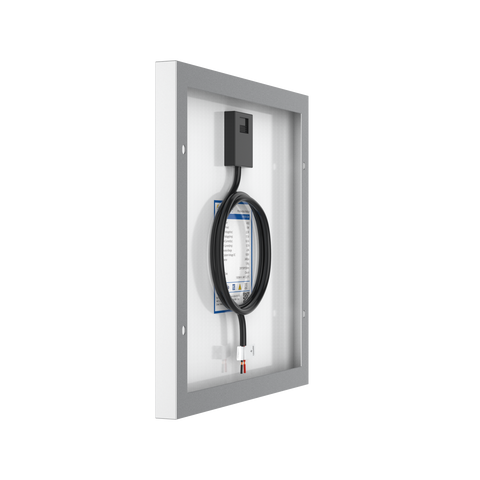

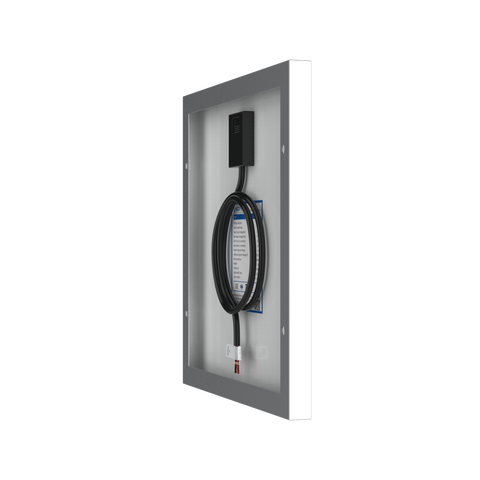

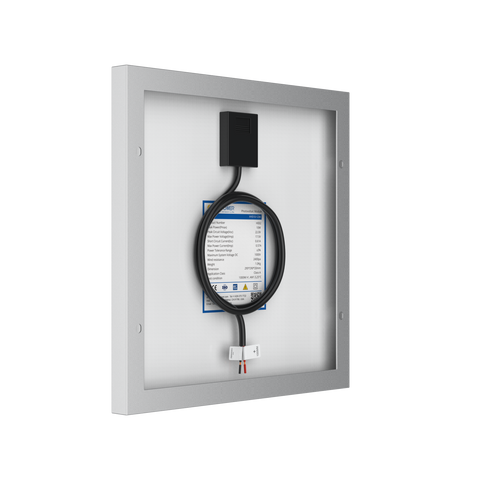

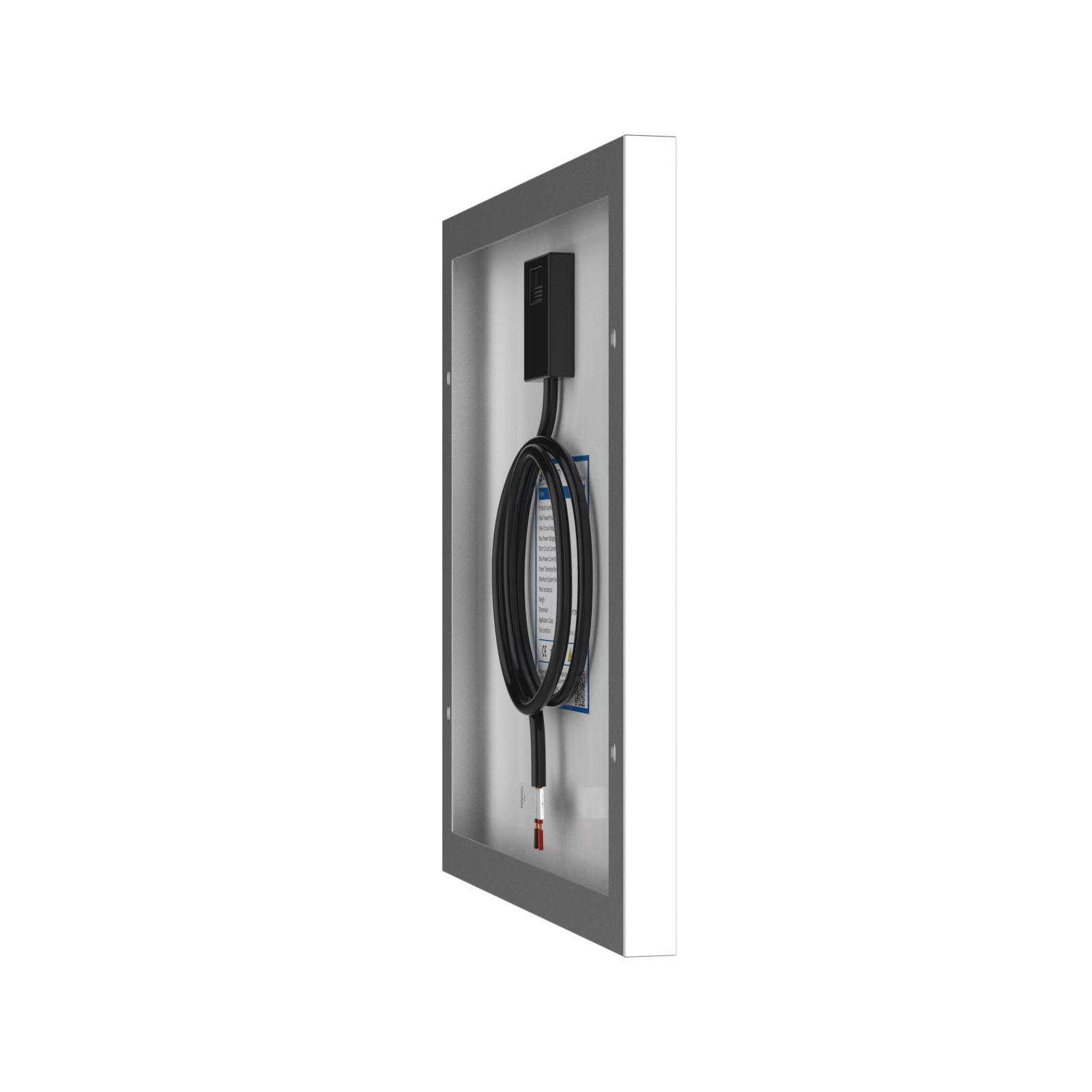

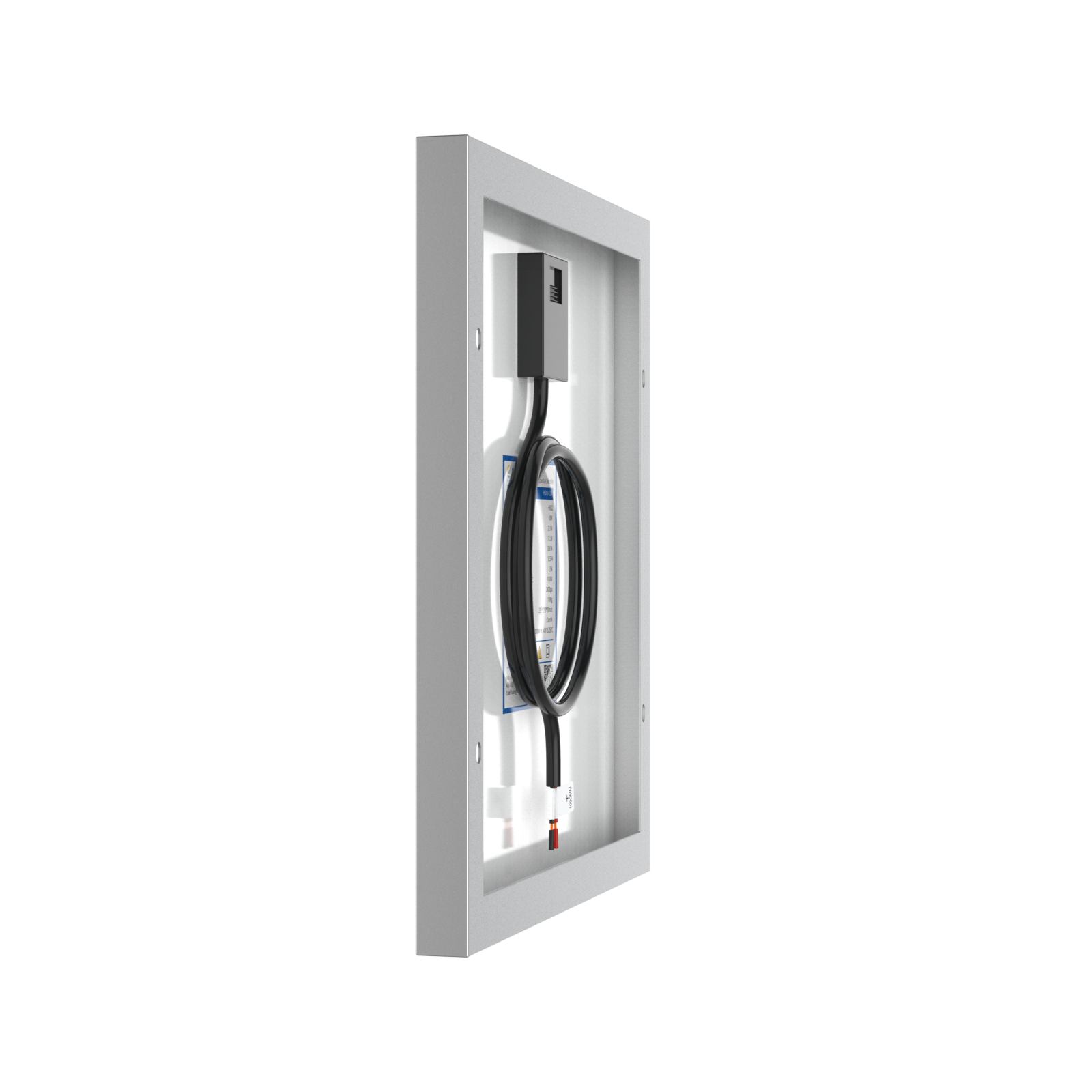

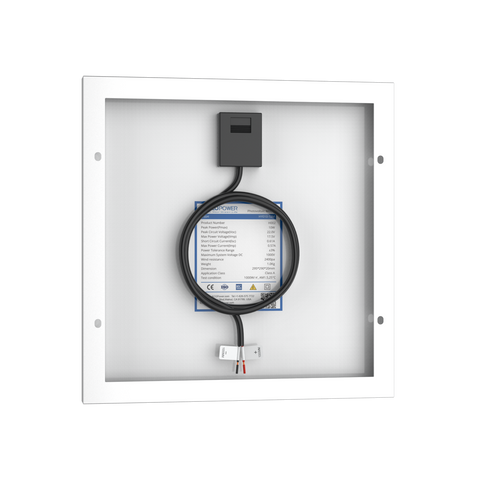

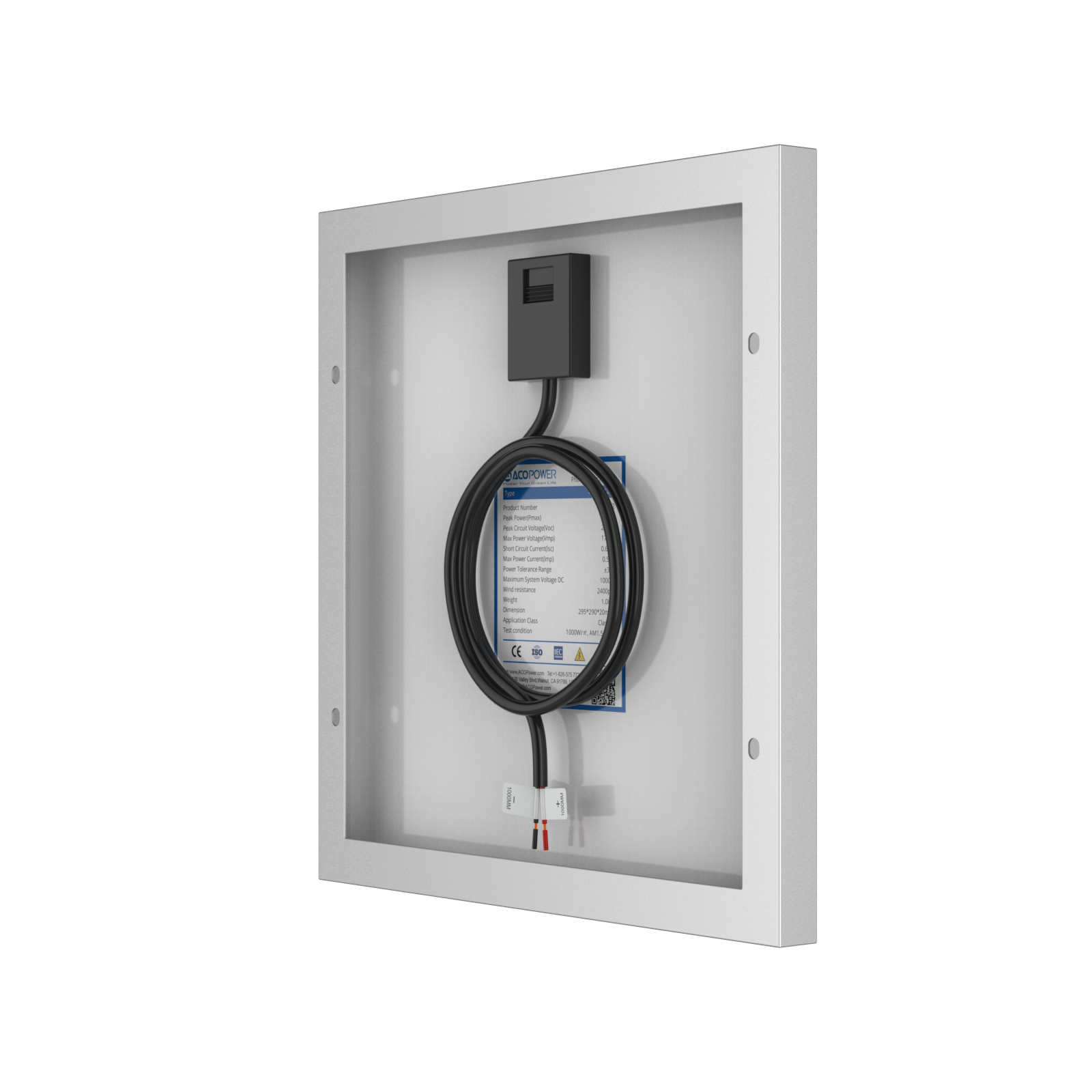

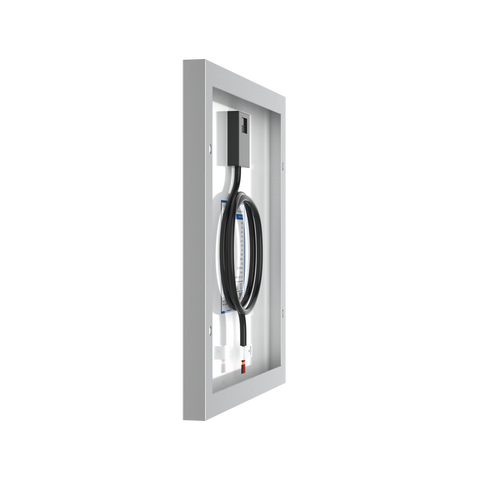

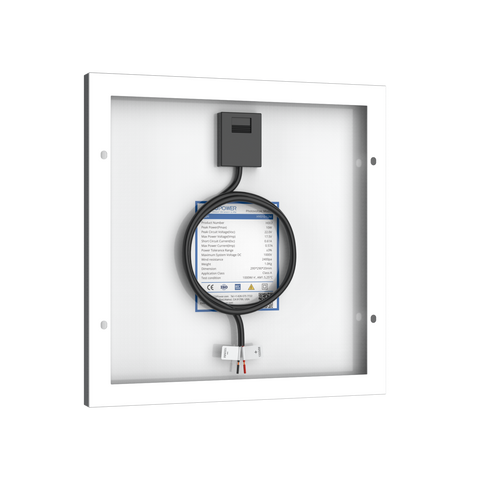

- Easy Installation – Pre-drilled holes & 90cm cable with quick connectors.
- Warranty – 5-year material & 20-year power output guarantee.
Features
ACOPOWER Small Solar Panel
PRODUCT DETAILS
Specification
| Characteristics | 10W |
| Open-Circuit Voltage(Voc) | 22.0V |
| Optimum Circuit Voltage(Vmp) | 17.5V |
| Short-Circuit Current(Isc) | 0.61A |
| Optimum Circuit Current(Imp) | 0.57A |
| Maximum Power at STC(Pmax) | 10W |
| Module Efficiency | 10.74% |
| Operating Temperature | -40°C ~ +85°C |
| Maximum System Voltage | 1000V DC |
| Power tolerance | ±3% |
| Type of cell | Mono-crystalline 125 x 125 mm (5 inches) |

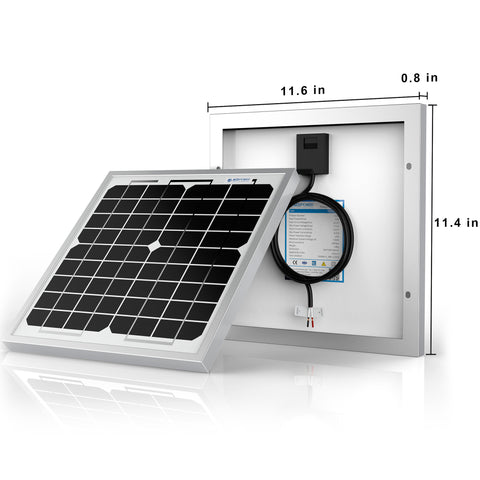

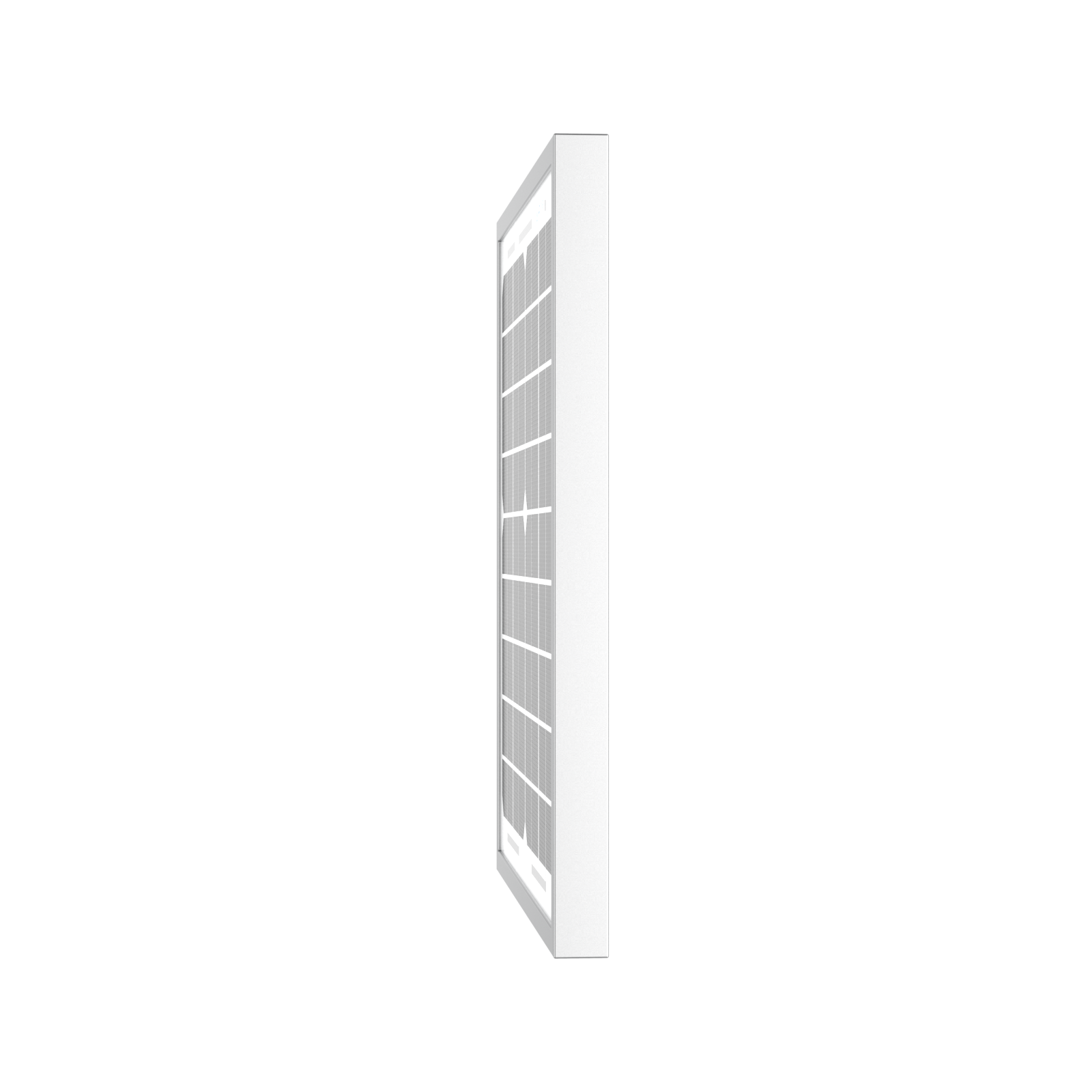

| Dimensions | 295x290x20mm (11.6x11.4x0.8 in) |
| Weight | 1.0 Kg (2.2 lbs) |
| Workmanship Warranty | 10-Year |
| Performance Warranty | 25-Year Power Output Warranty |
What's in The Box
- Mono Solar Panel
- User Manual
